How to Add Internal Network in Public Cloud/Dedicated Cloud.

How to Add Internal Network in Public Cloud.

1. Log in to your Sharktech Client Area and click on "My Services".






2. Select Public Cloud Hosting.






3. At the top of your page, click the button "Panel Login." Click on it.






4. A new window or tab will be opened, asking for your Username and Password.






5. Enter the username and password you received in the email, or you can check on the customer portal.



6. Your are logged in. In the left pane, you will see the "Compute" option. Click on it.

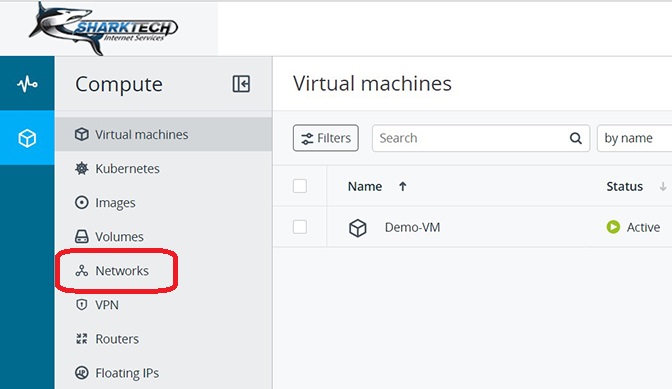

7. On the left pane, there are all the service options. Click on "Networks"

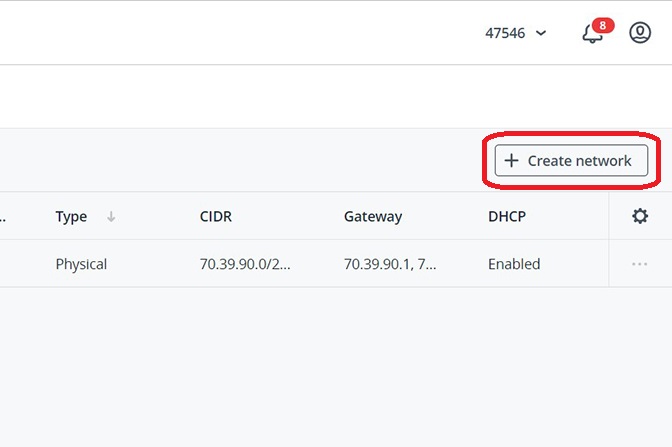

8. You will see a button on your right "Create Network" Click on it.

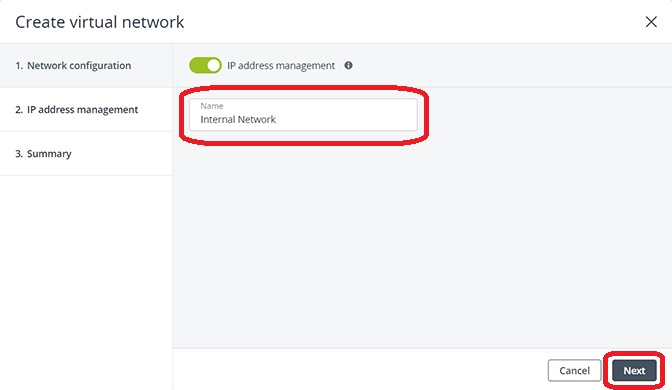

9. You will have a small pop-up opened. Give Network Configuration Name e.g. "Internal Network" and click on "Next"

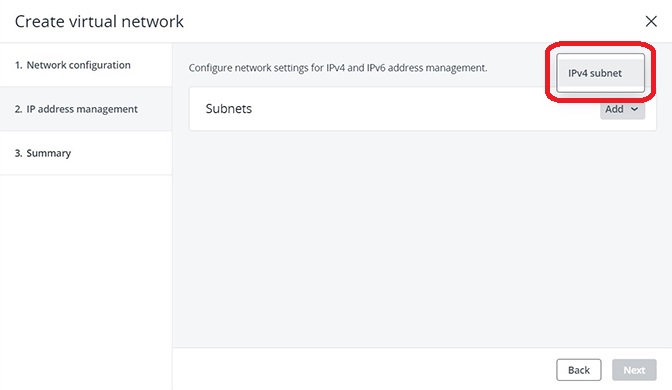

10. Click on "Add" and select "IPv4 Subnet"

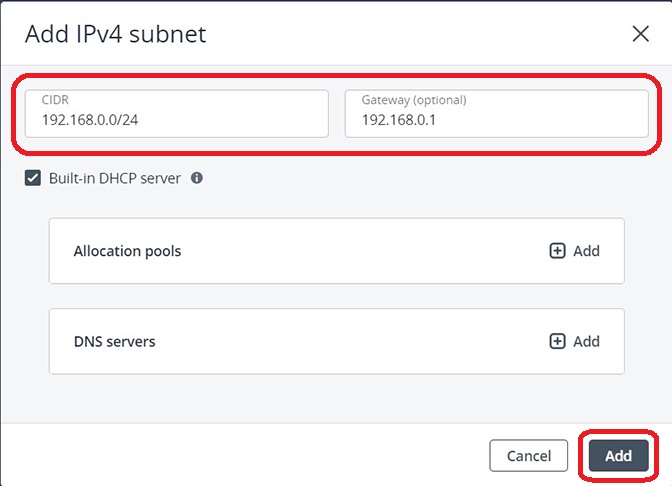

11. Enter the CIDR e.g.: 192.168.0.0/24 and gateway and modify the configuration according to your requirements and click "Add"






12. You will have your Subnet added, click Next.

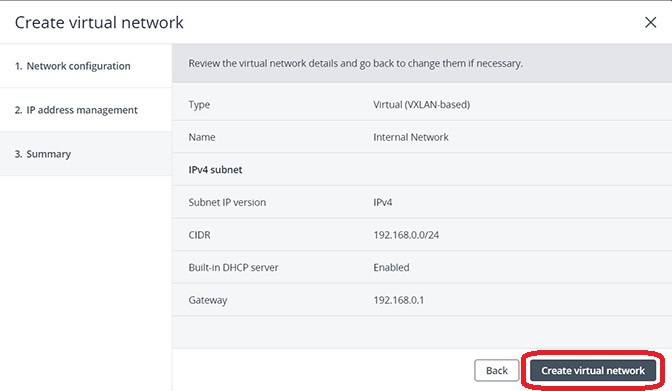

13. Go through the summary and click on "Create Virtual Network"

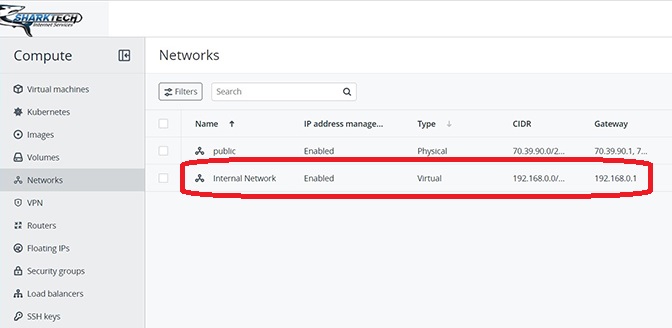

14. Your Virtual Internal Network is created, which you can use to communicate between the Cloud Virtual Servers to save excess bandwidth on internal data transfers.






15. You're Done.



If you still need any help, please feel free to Submit Ticket to our Cloud Hosting Section.
