How to Assign Internal Network to a VM in Public Cloud/Dedicated Cloud.

How to Assign Internal Network to a VM in Public Cloud/Dedicated Cloud.

1. Log in to your Sharktech Client Area and click on "My Services".






2. Select Public Cloud Hosting.






3. At the top of your page, click the button "Panel Login." Click on it.






4. A new window or tab will be opened, asking for your Username and Password.






5. Enter your Username and password from the "Access Information" section of the Client Area.






6. Your are logged in. In the left pane, you will see the "Compute" option. Click on it.

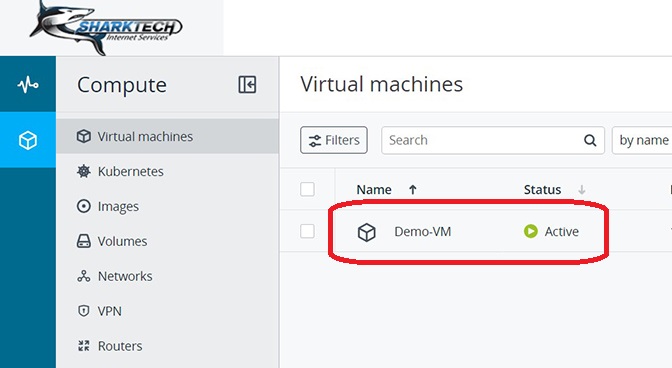

7. On the left pane, You will see your Virtual Machines.

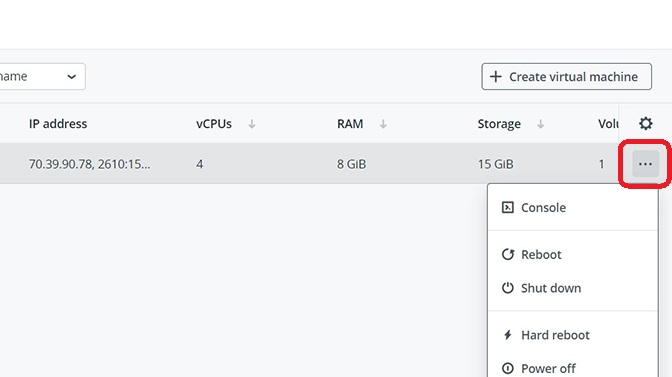

8. On the right side on your VM, click on three dots

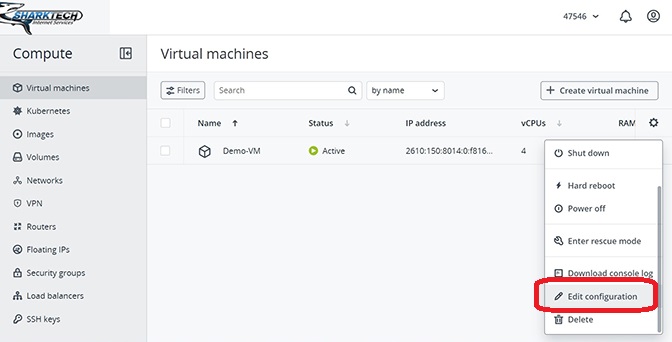

9. Select "Edit Configuration"

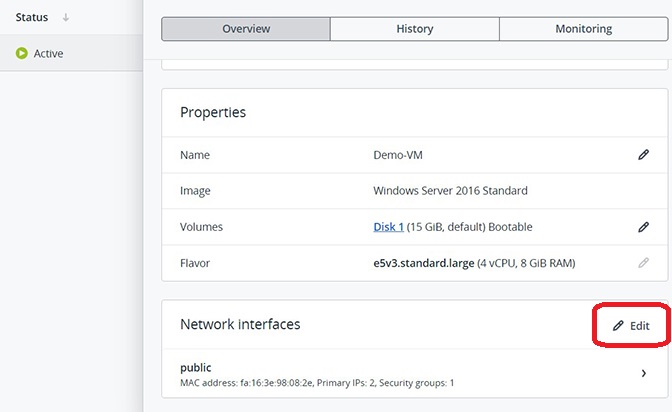

10. You will see Network Interfaces in the Overview Tab, click on "Edit"

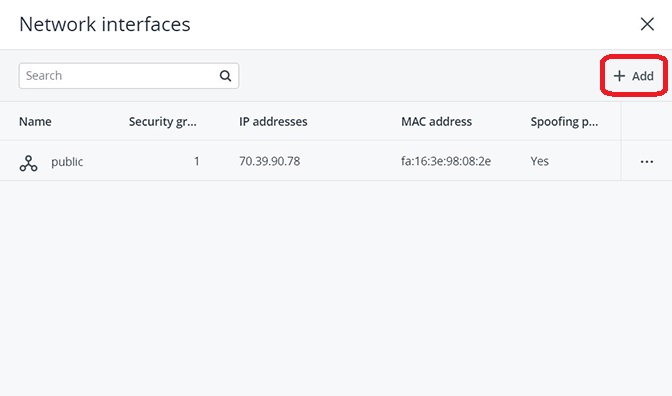

11. In the Network Interfaces section, click on "Add"

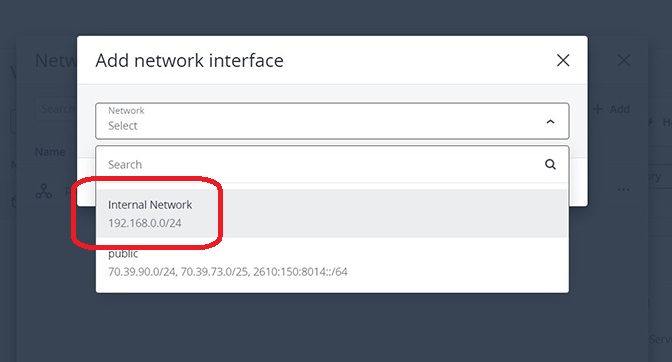

12. Select Internal Network from the drop down menu. (Reference: How to Create Internal Virtual Network.)

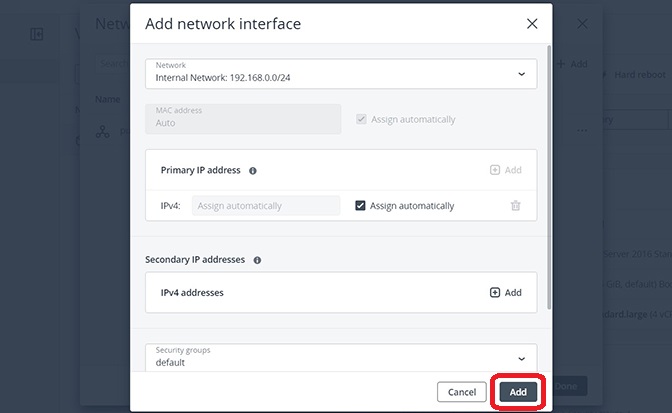

13. Click "Add"

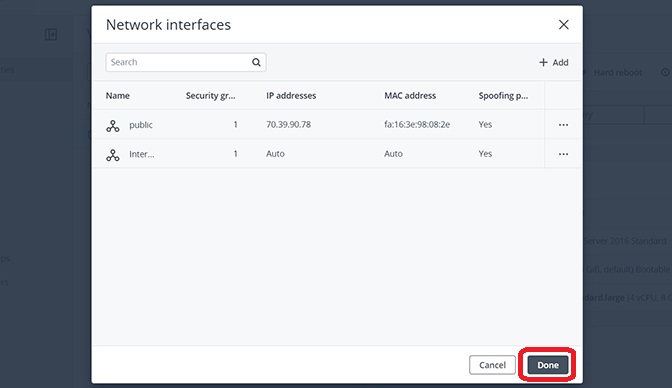

14. Your Virtual Internal Network is assigned to the VM, click "Done".

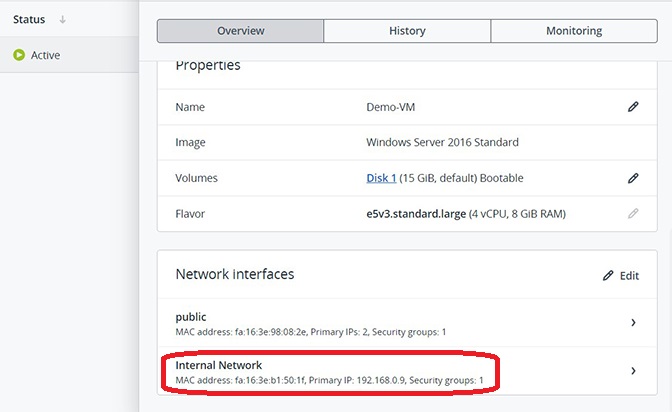

15. You can see, you Internal Virtual Network is added in the Network Interfaces.

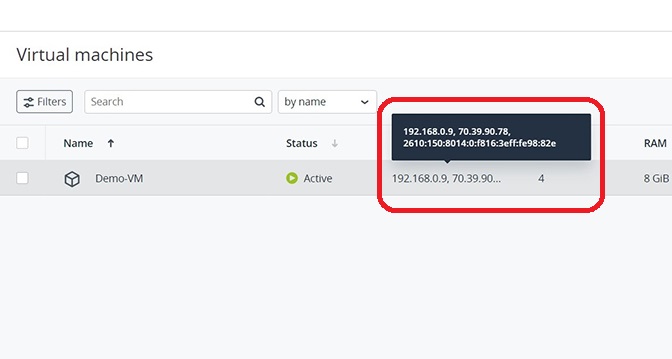

16. You can also double check by hovering the mouse over your VM's for a quick view of assigned IP Addresses.





17. You're Done.



If you still need any help, please feel free to Submit Ticket to our Cloud Hosting Section.
